| Type | M12 straight type female、5 Pin、L-coded |
| Maximum supply voltage AC UB | 48 V AC |
| Maximum supply voltage DC UB | 48 V DC |
| Maximum current | 16 A |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | – |
| Cable diameter | φ5…14 mm |
| Connection method | Screw connecting |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -25…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

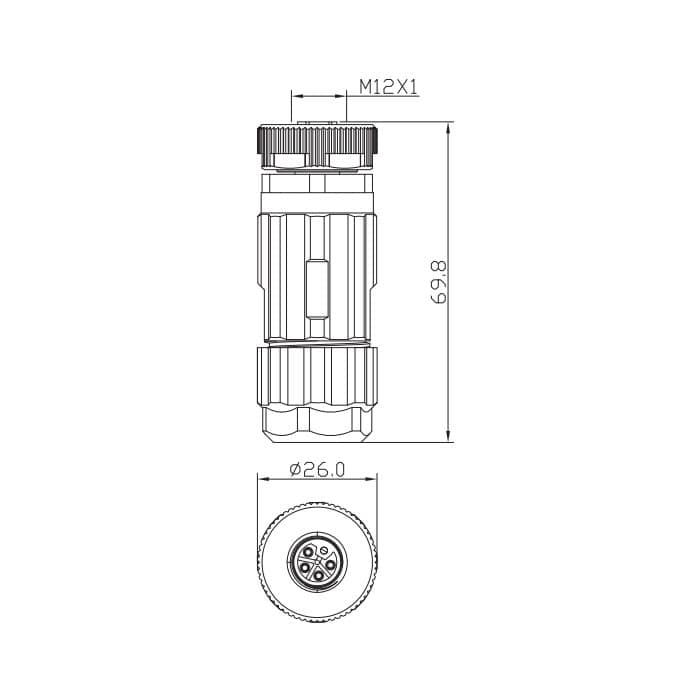

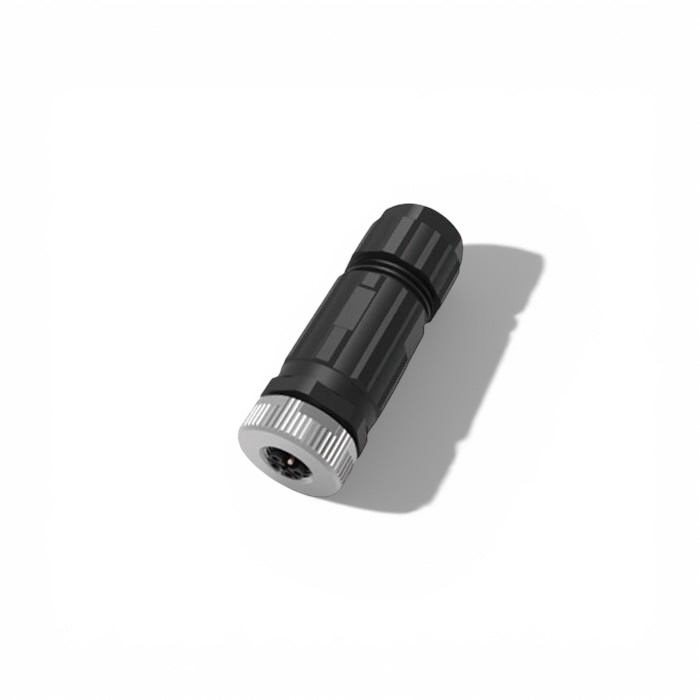

64L001 FAS M12 power connector, L-coded,5-Pin, female
M12 5Pin、L-coded、Straight type female、Screw connection、64L001
คุณสมบัติและรายละเอียดสินค้า
- Field wiring (screw type/inline)
- Standard interface
รหัสสินค้า: 64L001
หมวดหมู่: FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master
ป้ายกำกับ: CabelClamp, cable, FAS, IO-Link, JFAC
แบรนด์: FAS
