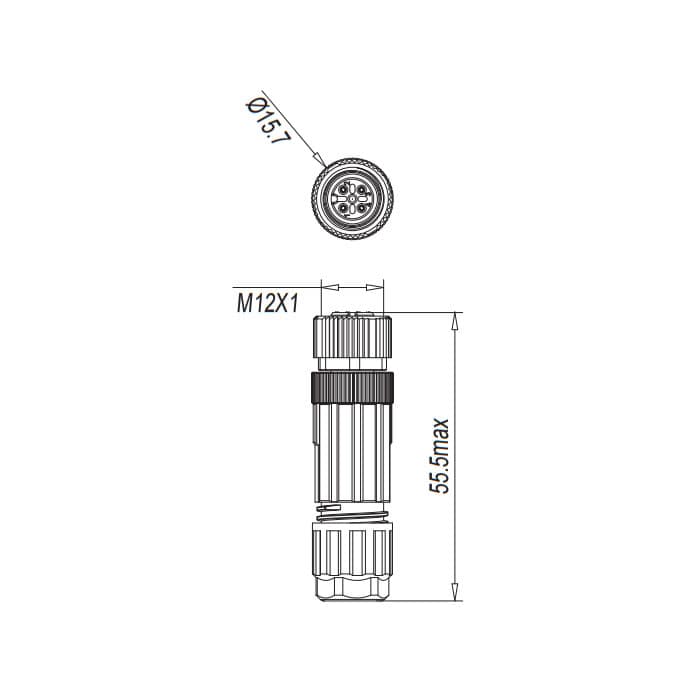

| Type | M12 straight type female、4 Pin、A-coded |
| Maximum supply voltage AC UB | 250 V |
| Maximum supply voltage DC UB | 250V |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 4×0.14…0.75 mm² |
| Cable diameter | φ4-6 mm |
| Connection method | Push-in terminal |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -40…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master
64F941 FAS M12 bus connector,4Pin

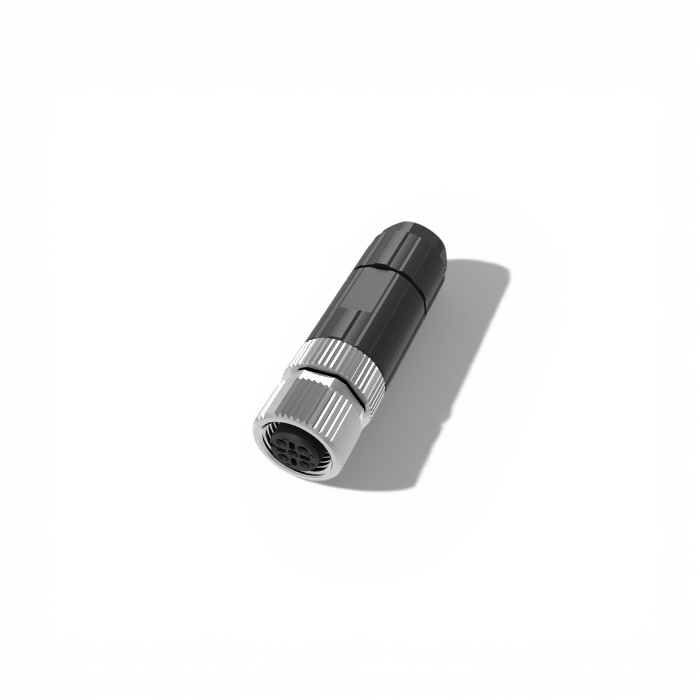

M12 4Pin、Straight type female、Push-in terminal、Cable diameter Ø 4-6 mm、64F941
คุณสมบัติและรายละเอียดสินค้า
- Field wiring
- Standard interface
