| Type | M12 straight male、4 Pin、D-coded |
| Maximum supply voltage AC UB | 250 V AC |
| Maximum supply voltage DC UB | 250 V DC |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 4×0.14…0.75 mm² |
| Cable diameter | φ5…7 mm |
| Connection method | Push-in terminal |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -25…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

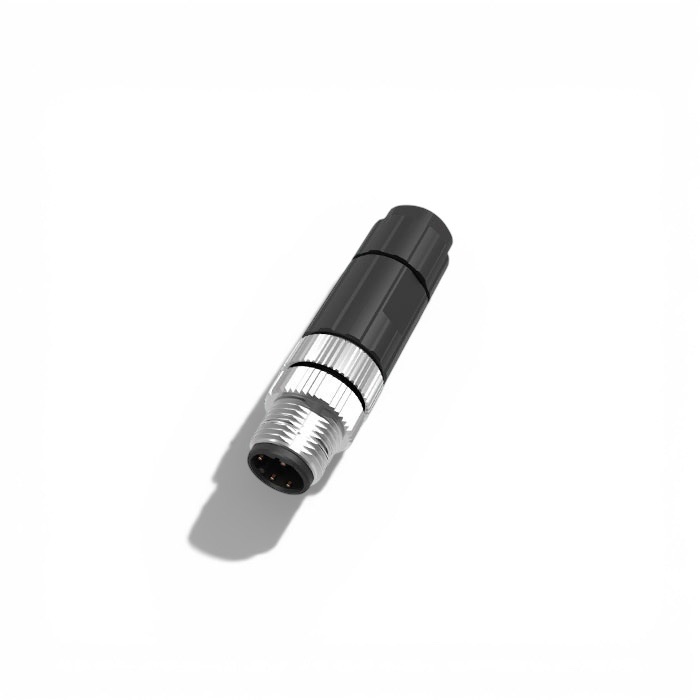

64F861 FAS M12 bus connector,4Pin
M12 4Pin、D-coded、Straight male、Push-in terminal、64F861
คุณสมบัติและรายละเอียดสินค้า
- Field wiring (screw type/inline)
- Standard interface
