| Type | M12 straight male、4 Pin、A-coded |
| Maximum supply voltage AC UB | 250 V AC |
| Maximum supply voltage DC UB | 250V DC |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 4×0.14…0.75 mm² |
| Cable diameter | φ3.5…7 mm |
| Connection method | Push-in terminal |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -40…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

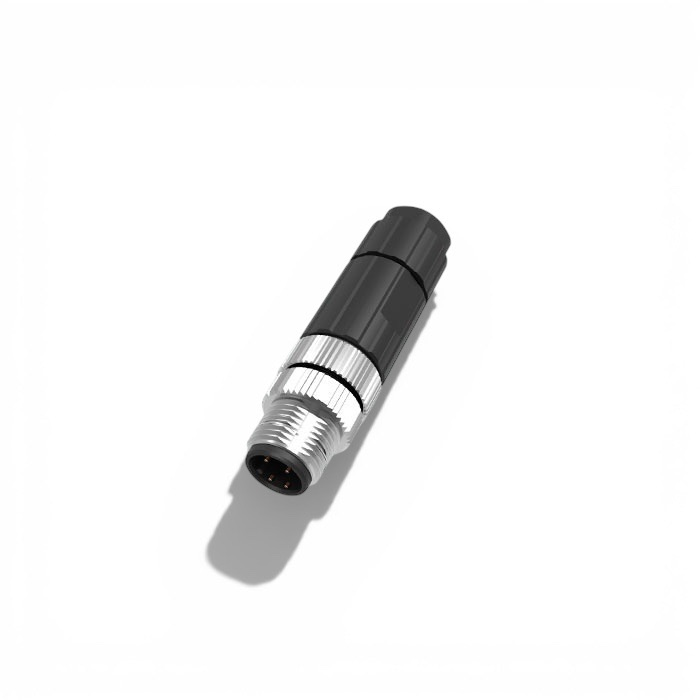

64F841 FAS M12 bus connector,4Pin
M12 4Pin、Straight male、Push-in terminal、64F841
คุณสมบัติและรายละเอียดสินค้า
- Field wiring
- Standard interface
