| Type | M12 straight male、5 Pin、A-coded |
| Maximum supply voltage AC UB | 125 V AC |
| Maximum supply voltage DC UB | 125 V DC |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 5×0.14…0.75 mm² |
| Cable diameter | φ4…6 mm |
| Connection method | Screw connecting |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -40…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

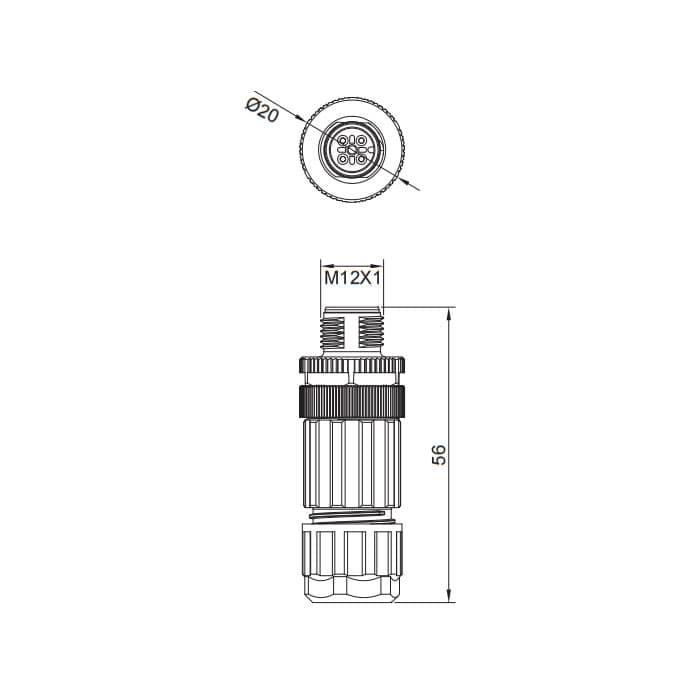

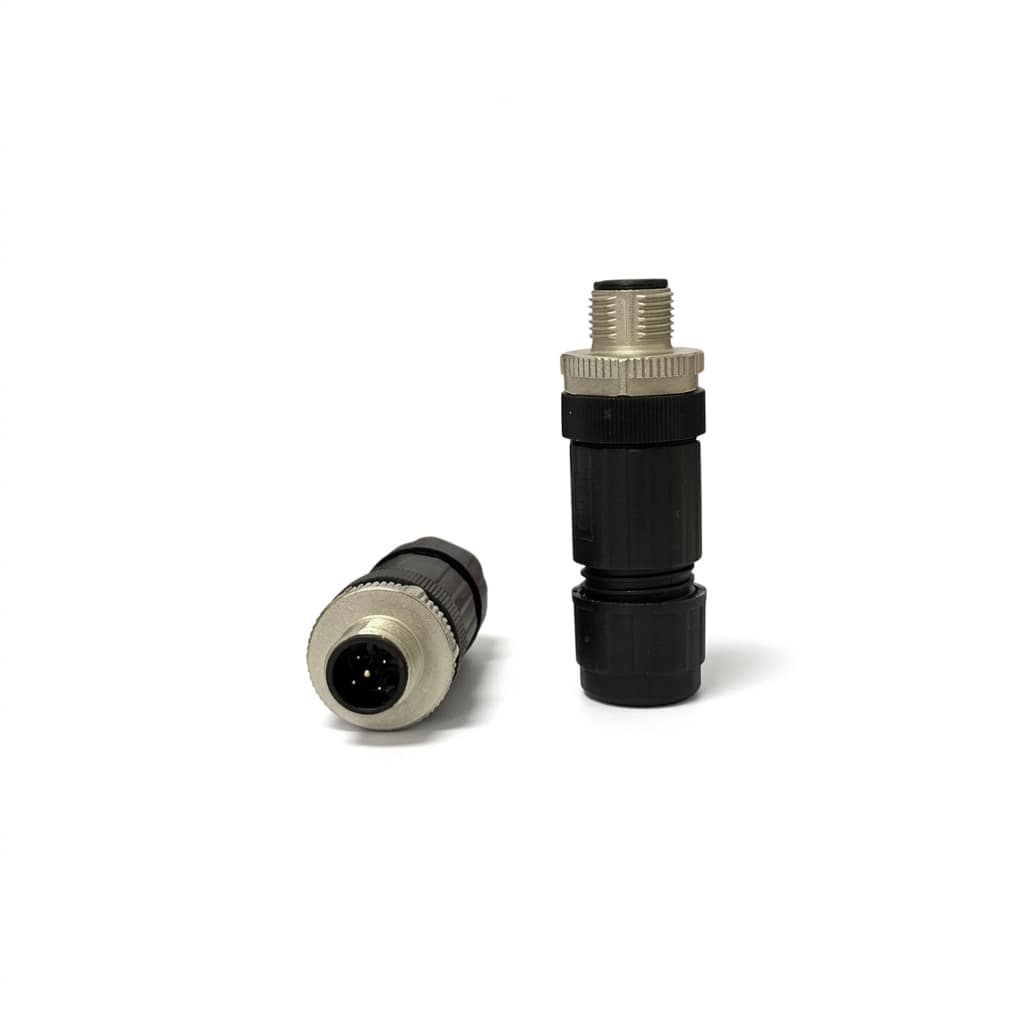

64F281 M12 5Pin,Straight male,Screw connection
คุณสมบัติและรายละเอียดสินค้า
- >Field wiring (screw type/inline)
- >Standard interface
