| Type | M8 straight male、A-coded、3Pin |
| Maximum supply voltage AC UB | 60 V |
| Maximum supply voltage DC UB | 60 V |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 3×0.14…0.75 mm²(bare wire) |
| Cable diameter | Ø 2…5 mm |
| Connection method | Push-in terminal |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -25…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

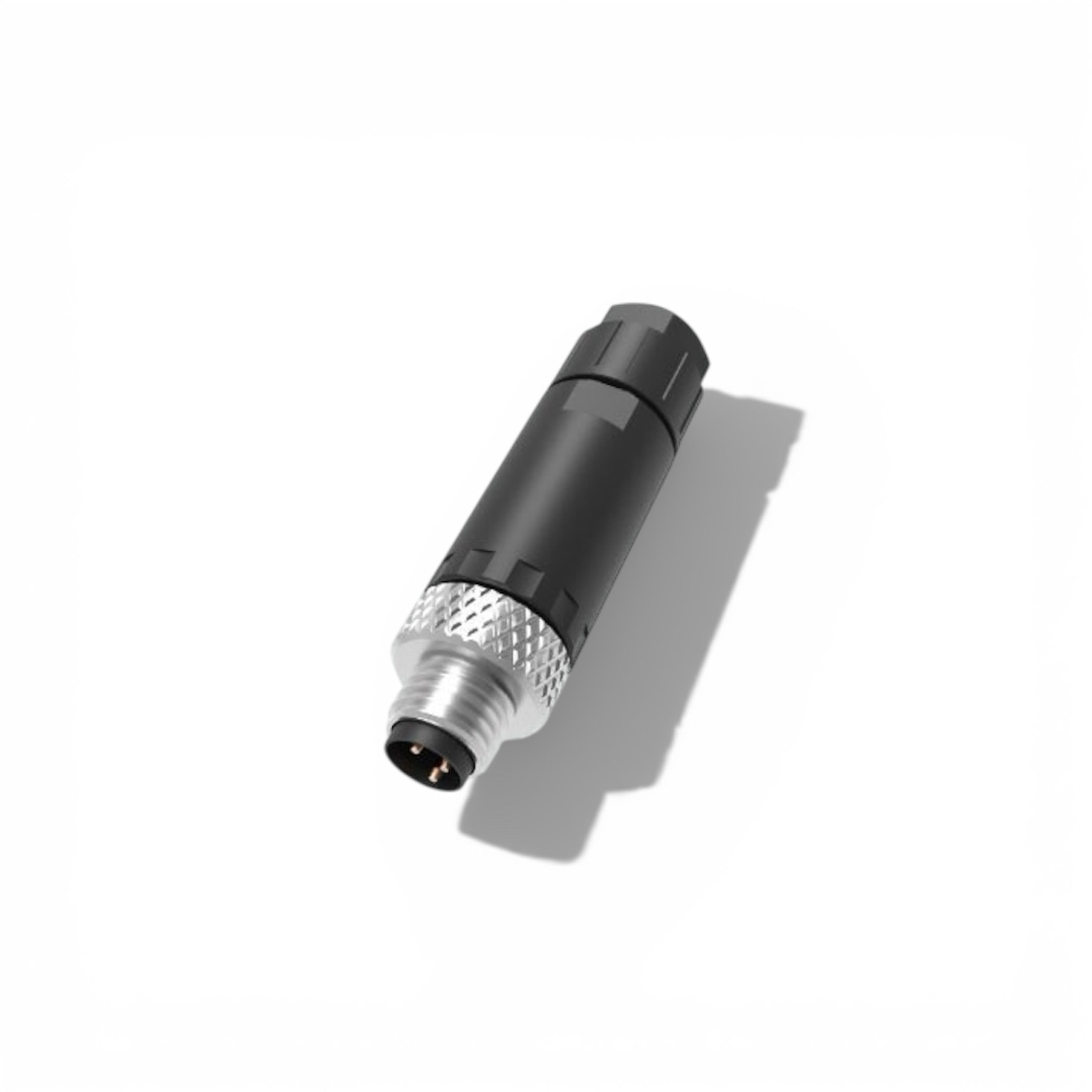

63F341 FAS M8 3 Pin, Straight male
M8 3 Pin、Straight male、Push-in terminal、63F341
คุณสมบัติและรายละเอียดสินค้า
- Field wiring (screw type/inline)
- Standard interface
