| Type | M8 straight male、4 Pin、A-coded |
| Maximum supply voltage AC UB | 60 V AC |
| Maximum supply voltage DC UB | 60 V DC |
| Cable | User-fabricated |
| Number of conductors x conductor cross-section | 4×0.14…0.5 mm² |
| Cable diameter | Ø 3.5…5 mm |
| Connection method | Screw connecting |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -40…+85 °C |
FAS, Cabinet and Wiring, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master

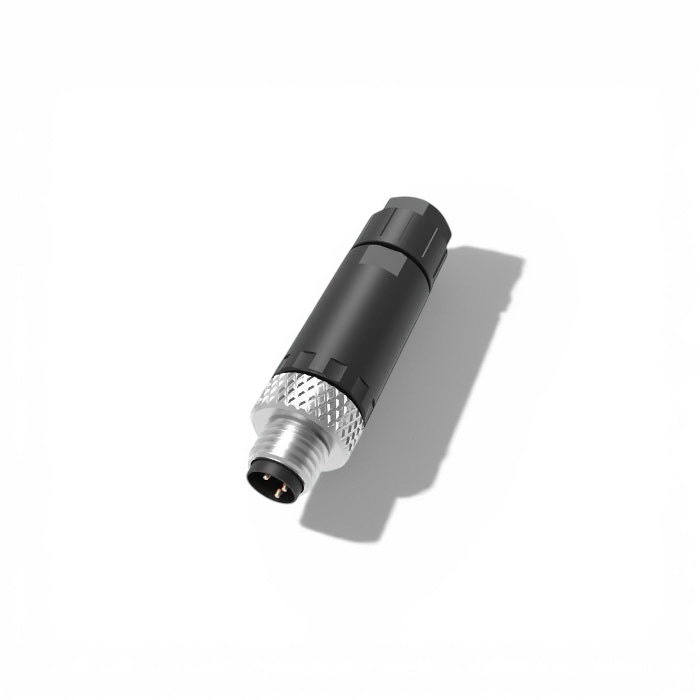

63F121 M8 4 Pin,Straight male,Screw connection
M8 4 Pin、Straight male、Screw connection、63F121
คุณสมบัติและรายละเอียดสินค้า
- Field wiring (screw type/inline)
- Standard interface
