| Type | M8 straight male (4 Pin、A-coded) conversion to RJ45 straight male |
| Rated working voltage UB | 60 V AC/DC |
| Cable color/material | Green/PUR(shield) |
| Number of conductors x conductor cross-section | 2×2×24 AWG |
| Degree of protection as per IEC 60529 | IP67/IP20 |
| Ambient temperature Ta | -25…+70°C |
FAS, EtherCAT network module, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master, IP67 network module

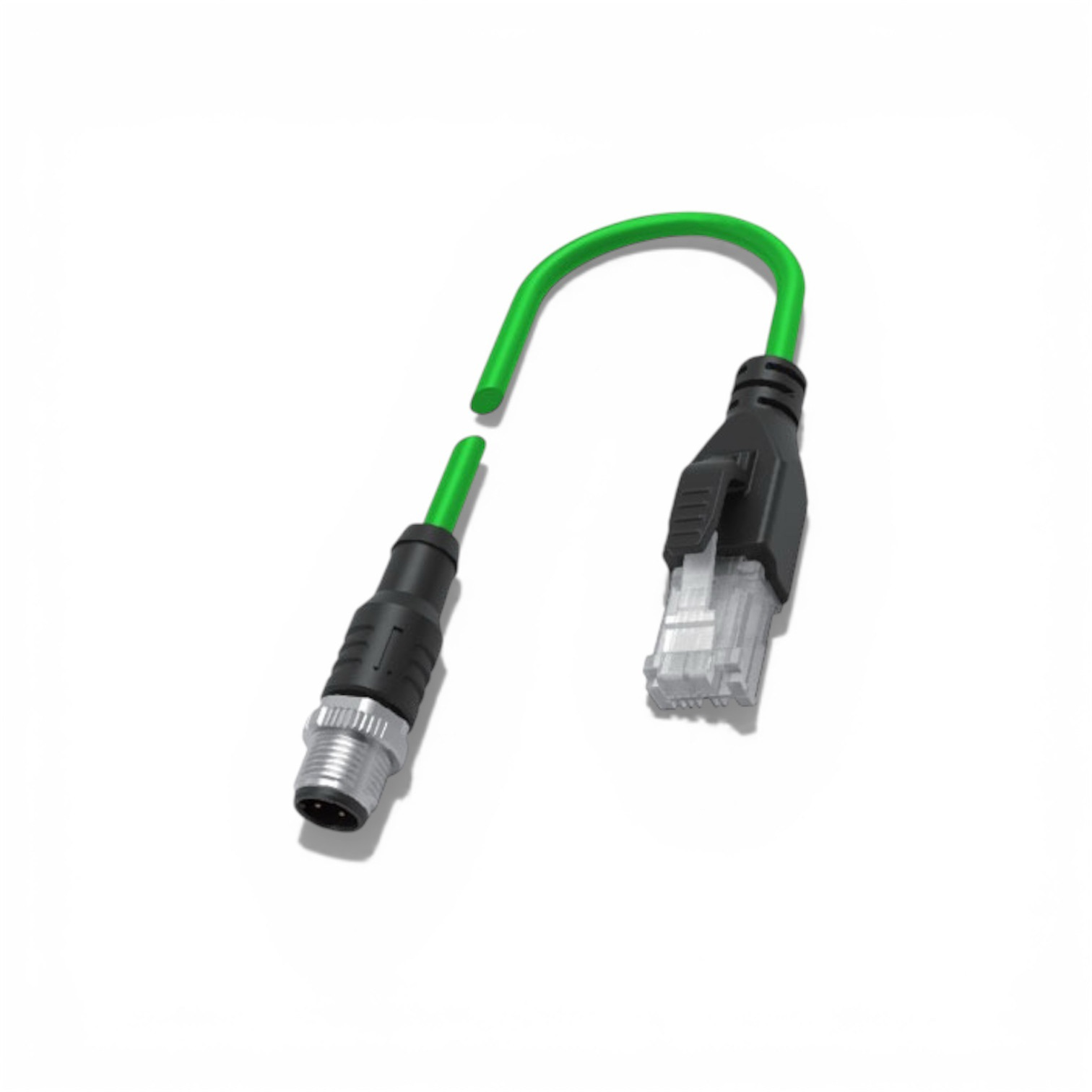

0C3021 FAS Bus connecting cable M8,4Pin Straight male/RJ45
M8 4Pin male/RJ45 male、Dual end molding PUR shield flexible cable、EtherCat network cable、Green sheath、0C3021-XXX
คุณสมบัติและรายละเอียดสินค้า
- หมายเหตุ: xxx = ความยาวสาย สามารถสั่งทำได้ตามความต้องการตอนที่สั่งซื้อ โดยความยาวสายจะเพิ่มขึ้นทีละ 0.5 เมตร ตัวอย่างเช่น: 005=0.5 เมตร, 010=1 เมตร, 015=1.5 เมตร
รหัสสินค้า: 0C3021
หมวดหมู่: FAS, EtherCAT network module, IO-Link Hub, IO-Link hub IP67 M8, IO-Link Master, IP67 network module
ป้ายกำกับ: CabelClamp, cable, FAS, IO-Link, JFAC
แบรนด์: FAS
