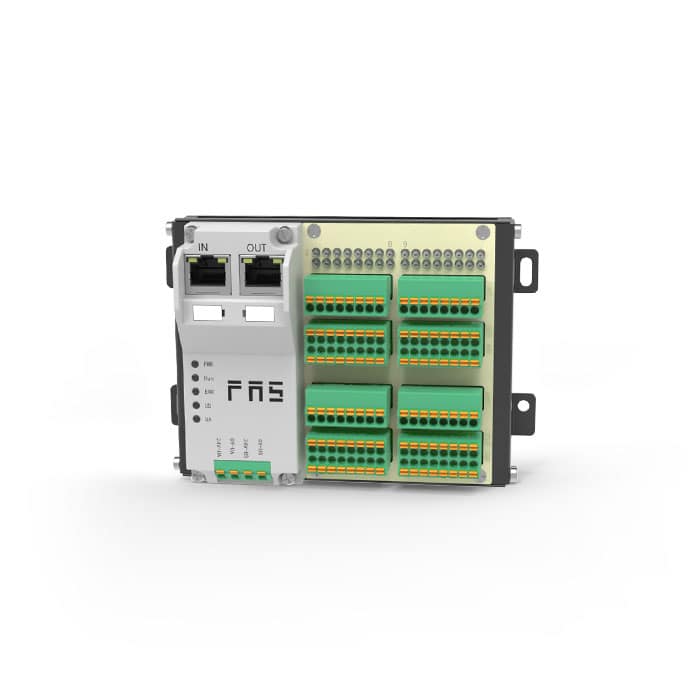

009E54 FAS EtherCAT Protocol

EtherCAT protocol, 32DI/DO adaptive, PNP, Terminal type, RJ45 network port, IP20 remote module, 009E54

รหัสสินค้า: 009E54 หมวดหมู่: IO-Link Master, CC-Link network module, FAS, IP20 network module, Multi-protocol network module, PROFINET network module ป้ายกำกับ: CC-Link, FAS, JFAC, PLC, remote access แบรนด์: FAS

Industrial Ethernet	EtherCAT
Type	32×DI/DO PNP, adaptive
Rated working voltage	18…30 V DC
Module current consumption	≤ 150 mA（24VDC）
Module status indicator	Yes
Network status indicator	Yes
Port status indicator	Yellow
Connection: Fieldbus	RJ45 network port
Connection: Power supply	Terminal type
Connection: I/O port	Terminal type
Number of I/O ports	32
Input number	Maximum 32 PNP inputs
Output number	Maximum 32 PNP outputs
Input/output copnfigurable	Adaptive
Maximum load current，sensor/channel	1 A
Maximum output load current	0.5A
Total current U_A	≤ 4A
Total current U_S	≤ 4A
Degree of protection as per IEC 60529	IP20（In correct connection）
Certification/Standard Compliance	CE
Working temperature	-25…+70℃
Storage temperature	-40…+85℃
Installation method	4 mounting holes/rail mounting

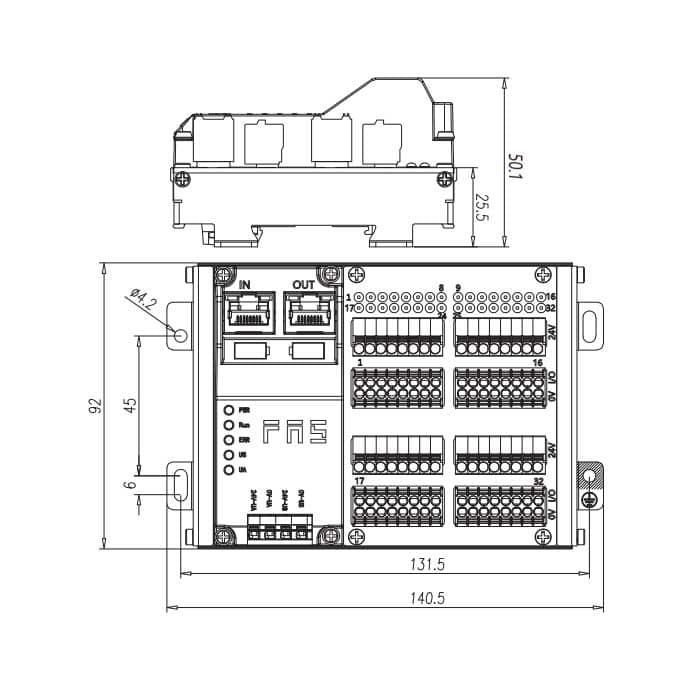

Dimension (LWH)	140.5 x 92 x 50.1
Housing material	Aluminum alloy electrophoresis
